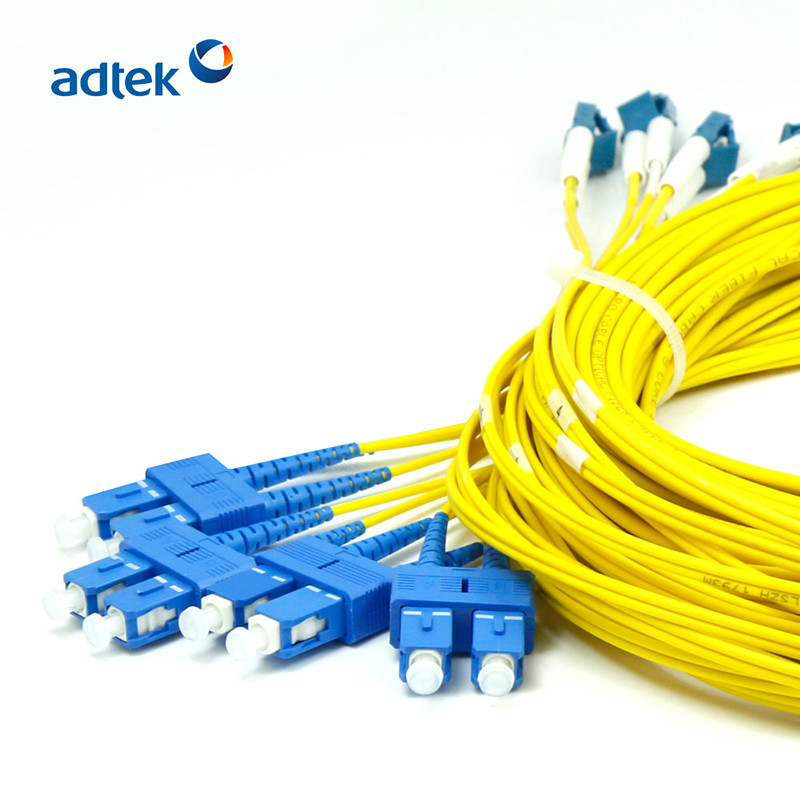

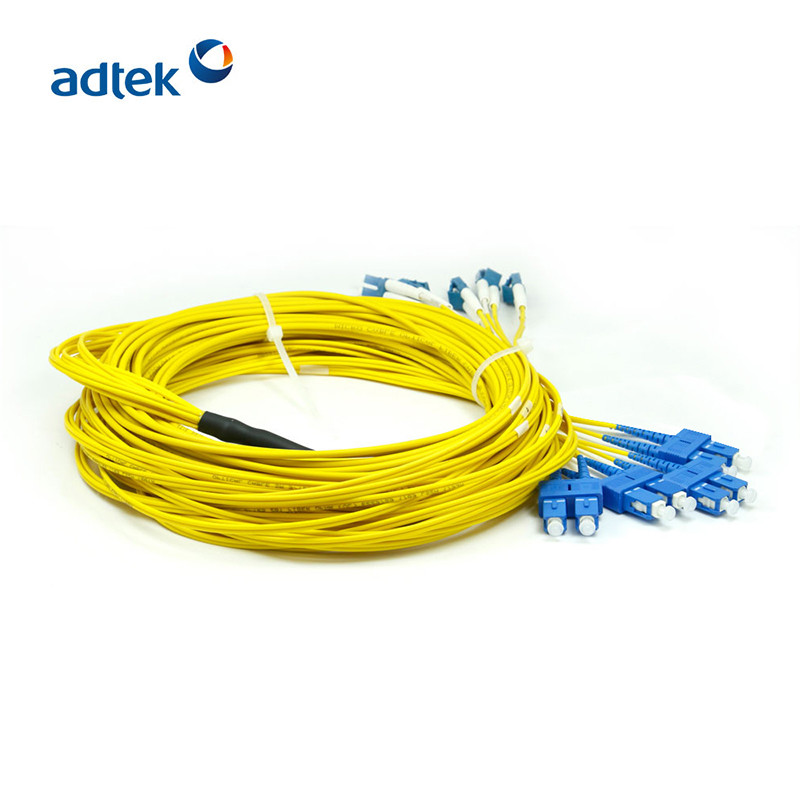

4 LC/UPC-SC/UPC Duplex 8 Fibers Singlemode PVC/LSZH Per-terminated Patch Cord
- PC, UPC or APC polishing (APC for SM)
- Standard housing, ceramic ferrule
- Cable diameter: 2.0mm or 3.0mm or 0.9mm
- Fiber diameter: 9/125μm, 62.5/125μm or 50/125μm
- Insertion loss: SM Less than 0.3 dB MM Less than 0.3dB
- Return loss: PC SM larger than 45 dB
- UPC SM larger than 50dB
- APC SM larger than 60dB
- UPC MM larger than 20dB
- Repeatability: Less than 0.2 dB
- Changeability: Less than 0.1 dB
- Operating temperature range: -40~ 60 degree Celsius
- Storage temperature range: -40~ 60 degree Celsius
- Tensile strength: 100N
- Min. bending radius: 35mm
| Range of Mode | Single mode or Multi mode |
| Cable Type | Simplex, Duplex Ziocord. or Multi-cores |
| Connector Style | SC, FC, ST, LC, MTRJ, E2000, MU, MPO /MTP.etc |
| Polish or Ferrule Interface Type | PC, UPC, APC |
| Cable Diameter | 0.9mm, 1.2mm, 1.6mm, 1.8mm,2.0mm, 3.0mm |
| Outer Jacket | PVC /LSZH/OFNP |
| Jacket Color | SM Yellow | OM1, OM2 Orange | OM3 Aqua | OM4 Aqua or Violet | OM5 Lemon Green |
| Durability | 500 cycles(0.2 dB max increase). 1000mate/de mate cycles |
| Operating Temp. | -25℃ to +70℃ |
| Storage Temp. | -40℃ to +85℃ |
| Connector Type | Performance Level |
| Standard | Elite |
| Connector | Mode | Endface | IL(dB) | RL(dB) | IL(dB) | RL(dB) |
| LC/SC/FC/ST | SM | PC | ≤0.2 | ≥50 | ≤0.15 | ≥50 |
| UPC | ≤0.2 | ≥55 | ≤0.15 | ≥55 |
| APC | ≤0.2 | ≥60 | ≤0.15 | ≥60 |
| MM | PC | ≤0.2 | ≥35 | ≤0.15 | ≥35 |
| MPO/MTP | SM | APC | ≤0.7 | ≥60 | ≤0.35 | ≥60 |
| MM | PC | ≤0.5 | ≥20 | ≤0.35 | ≥20 |
| MTRJ | SM | PC | ≤0.5 | ≥50 | / | / |
| MM | PC | ≤0.5 | ≥35 | / | / |
1, The product adopts imported production of ceramic pins, imported high-quality fiber optic cable.
2, The introduction of foreign advanced grinding technology and grinding equipment, to ensure that the optical fiber circular grinding offset, the optical fiber depression, the surface of the fiber without scratches and defects, the size of the radius of curvature of the end face of the ceramic capital and other grade parameters in line with standard regulations.
3, Insertion loss is small, return loss, good interchangeability, repeated plugging performance is excellent, easy to use.
4, According to customer requirements to provide a full set of customized services.
5,All components are optically tested and tested in accordance with ROHS standards.
6, Consistent with ANSI / TIA / EIA and ISO / IEC for durability, moisture resistance, coupling stress, fiber optic tensile force and adaptability to harsh environments such as humidity, temperature extremes, plugging forces and cable tensile stress, impact and vibration requirements.
7, Operating temperature (-40℃~+75℃), Storage temperature (-40℃~+85℃)
